Non-Linear Systems
Signal Conditioners

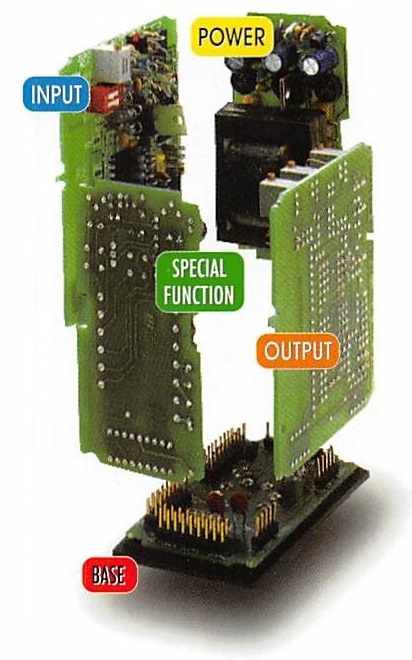

Signal Conditioners The Series 8000 Signal Conditioners are designed with modular architecture to allow full input, output, and special function selectability and interchangeability. They can also be used as isolators, signal amplifiers and transmitters.

Select the exact input, output, and special function board for your unique application. Plug these boards into the isolated power supply and mother board set and you are ready to go! Units can be field ranged and configured or an NLS authorized distributor can do this for you.
Features

  Input, output, isolation power supply and special functions combined into one low-cost modular unit.
  One NLS Series 8000 Signal Conditioner can be used in place of two or three other manufacturer's signal conditioners.
  Field-settable range and span configurable.
  Large selection of input, output and special function circuit modules.
  High performance fuse protected, linear power supply for full 1500VDC isolation.
  Versatile Industry standard pin for pin plug-in modules, 2.9" channel track or DIN rail mounting.
  High impact, flame retardant polycarbonate case (UL 94v-0).
  Made in the U.S.A.
Specifications and Options


STANDARD SPECIFICATIONS

Isolation:
    Power to input and output: 1500VDC or AC peak
    DC output (input to output): 1500VDC or AC peak
    Dielectric: 2KV for one minute (input to case)
Operating Temperature: 0-60°C (32 to 140°F)
Power:
    120VAC/240VAC; (48Hz to 400Hz) @2.5 watts ±10%
    9VDC to 32VDC @2.5 watts
Common Mode Rejection: >120dB @ DC, >80dB @ 60Hz
Common Mode Voltage: 600VDC or AC peak (input to ground)
Zero Offset Adjustment: ±50% of each selected range
Zero Adjustment: ±15% (non-interactive)
Span Adjustment: ±15% (non-interactive)
Range Settings: Switch Selectable
Overvoltage Protection:
    250VAC on input
    (not for current, RTD, T/C, mV inputs)
Short Circuit Protection: Outputs (Voltage and Current)
RFI Suppression: <10V/Meter @ 146mHz
Shock and Vibration: Meets MIL-T-28800 Type II Class 5
Humidity: 90% RH noncondensing
Case: ABS, Meets UL 94-0 flame retardant
Weight: 1.3 Lbs (0.59kg)

Accessories

DR011     11 Pin Barrier Terminal Socket for DIN rail or flush
DR018      8 Pin Barrier Terminal Socket for DIN rail or flush
SM008     8 Pin Barrier Terminal Socket for Channel Track or flush
SM011     11 Pin Barrier Terminal Socket for Channel Track or flush
SM800     Retaining Spring for High Vibration Mounting Areas
SR006      0.1Ω (5 Watts) Shunt Resistor 5 Amp MAX (DC or AC)

Signal Conditioner
To design your Series 8000 Signal Conditioner, please follow the Ordering Guide sequence below.

Ordering Guide

Input Table and Base Style Selection

Outputs, Special Functions, Options

Mechanical Specifications
Documentation
Input Board Data Sheets
5600 Add-Subtract Input Data Sheet
Add/Subtract Input
5610 Multiply Divide Input Data Sheet
Multiply/Divide Input
5620 Frequency Scaler Input Data Sheet
Frequency Scalar Input
5690 Programable Ramp-Soak Input Manual
Programable Ramp Soak Input
5710 LVDT Input Data Sheet
LVDT Input
5400 DC-AC-Pot Input Data Sheet
AD/DC/Pot Input
5430 Frequency Input Data Sheet
Frequency Input
5440 TC-RTD-mV Input Manual
TC/RTD/mV Input
5580 High-Low Select Input Data Sheet
High/Low Select Input
5590 Strain Gauge Input Data Sheet
Strain Gauge Input
Output Board Data Sheets
5501 Single Limit Alarm Output Manual
Single Limit Alarm Output
5520 Frequency Output Manual
Frequency Output
5630 Valve Positioner Output Data Sheet
Valve Positioner Output
5420 DC Output Manual
DC Output
470 Dual Limit Alarm Manual
Dual Limit Alarm Output
Power Supply and Function Board Data Sheets
AC Power Supply Data Sheet
AC Power Supply
Adjustable Power Supply Data Sheet
Adjustable Power Supply
DC Power Supply Data Sheet
DC Power Supply
Linearization Function Data Sheet
Linearization Function
Power Term-Nth Root Function Data Sheet
Power Term-Nth Root Function
Ramp Buffer Function Data Sheet
Ramp Buffer Function
Rate of Change Function Data Sheet
Rate of Change Function
Peak-Sample Hold Function Data Sheet
Peak-Sample Hold Function
Operator's Manual
Series 8000 Operator's Manual
Series 8000 Manual
